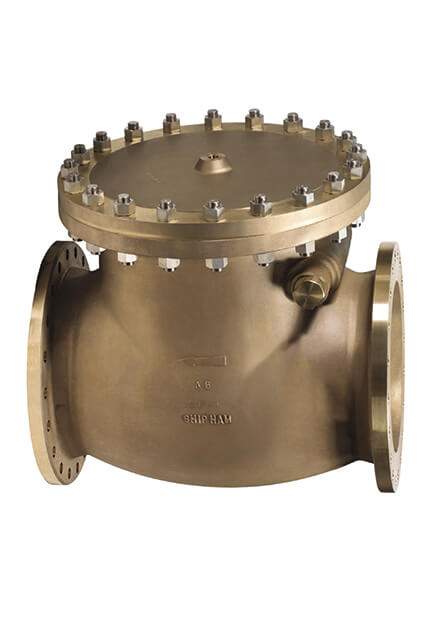

SC04 Swing Check Valve by Shipham Valves

Specifications

Technical Data

Size Range

1" - 24"

Temperature Range

-46°C to +425°C

Bonnet Style

Bolted Bonnet

Operator

Automatic

Shut Off Class

API 598, ISO 5208 Rate E

MATERIALS OF CONSTRUCTION

Body Materials

6Mo, Bronze, Duplex, Hastelloy® B, Hastelloy® C, Inconel® 625, Inconel® 825, Monel®, Nickel Aluminium Bronze, Super Duplex, Titanium

Obturator materials

Nickel Aluminium Bronze, Monel®, Bronze, Duplex, Super Duplex, Titanium, Inconel® 625, Inconel® 825, 6Mo, Hastelloy® B, Hastelloy® C

Stem Materials

Nickel Aluminium Bronze, Monel®, Duplex, Super Duplex, Titanium, Inconel® 625, Inconel® 718, Inconel® 825

Seal Materials

PTFE, Graphite

DESIGN STANDARDS & APPROVALS

Face to Face

ASME B16.10

Accreditations

PED 2014 / 68 / EU

Downloads Product Overview Benefits

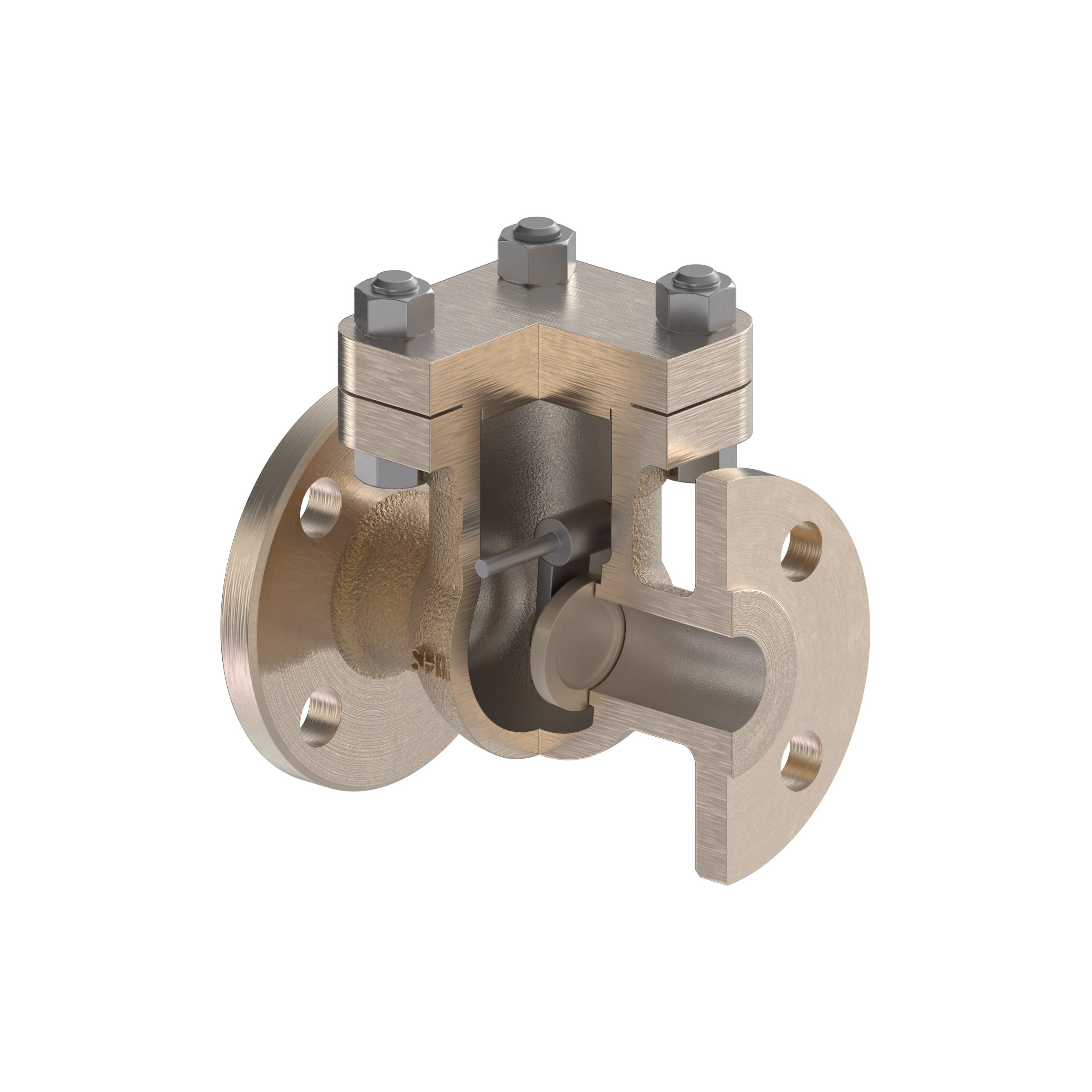

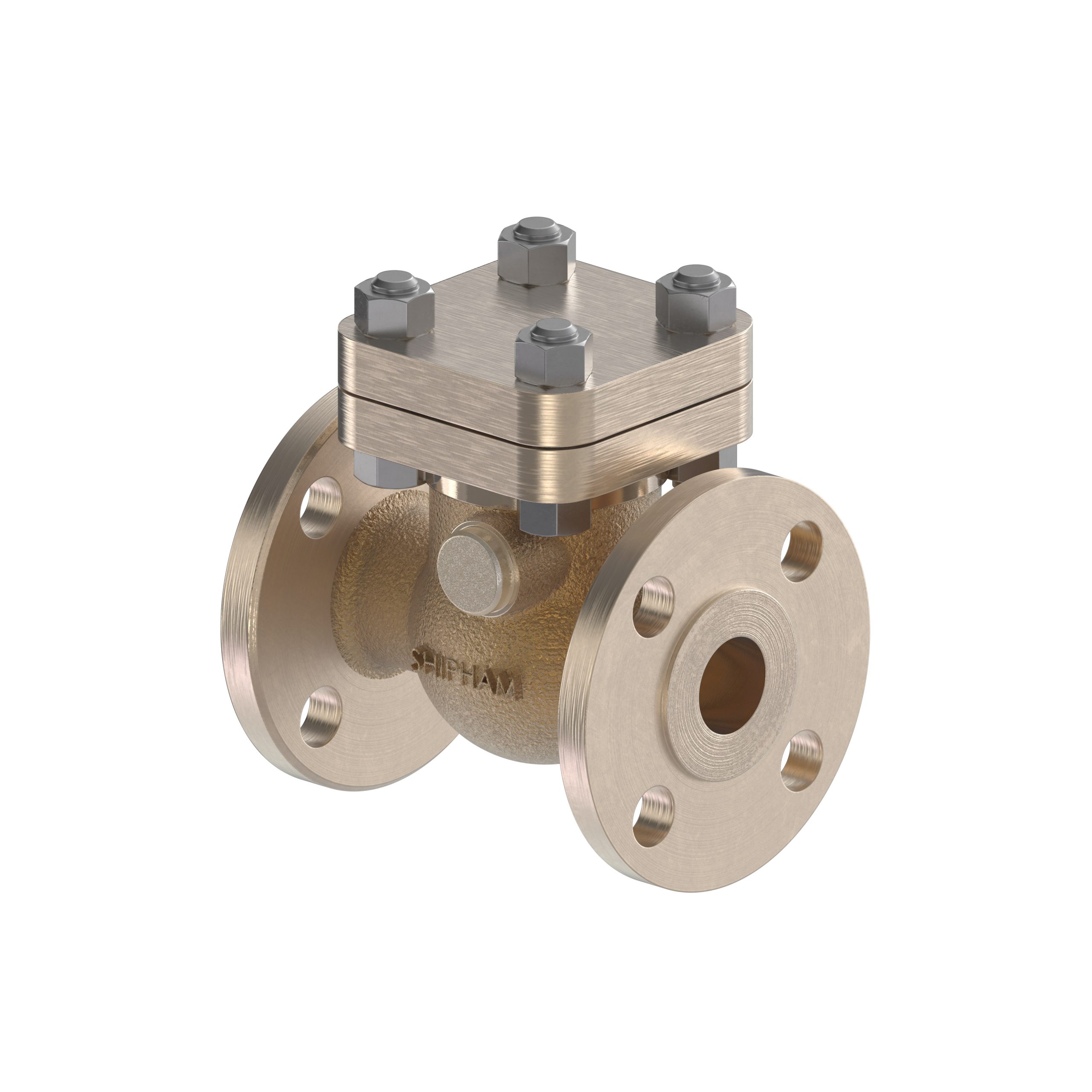

Swing Check Valve – SC04

Request a Quote

The benefits of the SC04 Bolted Bonnet Check Valve include:

Automatic operation due to the fluid acting on the disc
Bolted bonnet design ensures joint integrity
Low-cracking pressure ensures a responsive product design without seat damage from chattering
Soft seated option for gaseous services

Swing Check Valve Technical Sales Manual
