SC01

Swing Check Valve – SC01

Size Range 1/2" - 2"
Temp Range -46°C to +425°C
Request a Quote

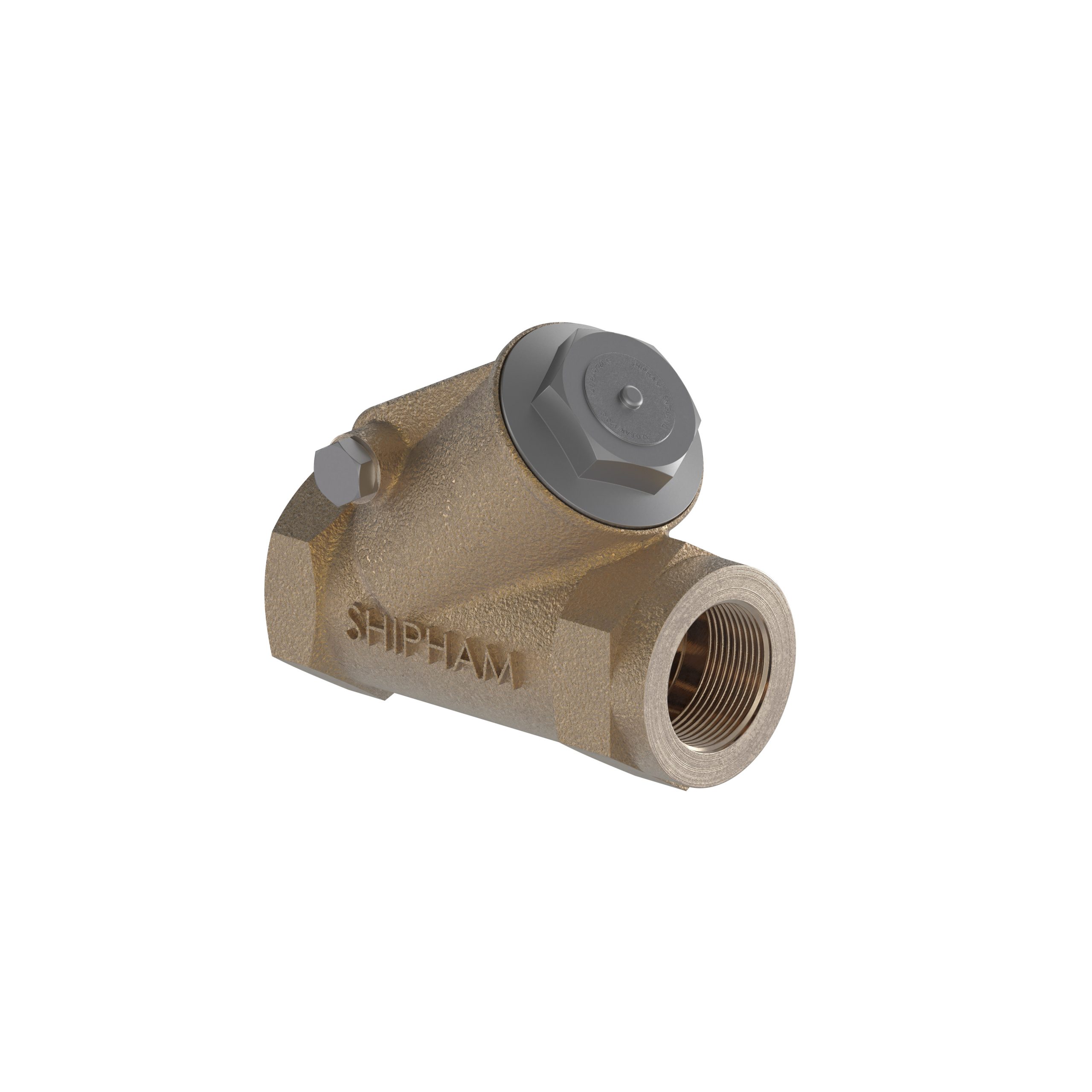

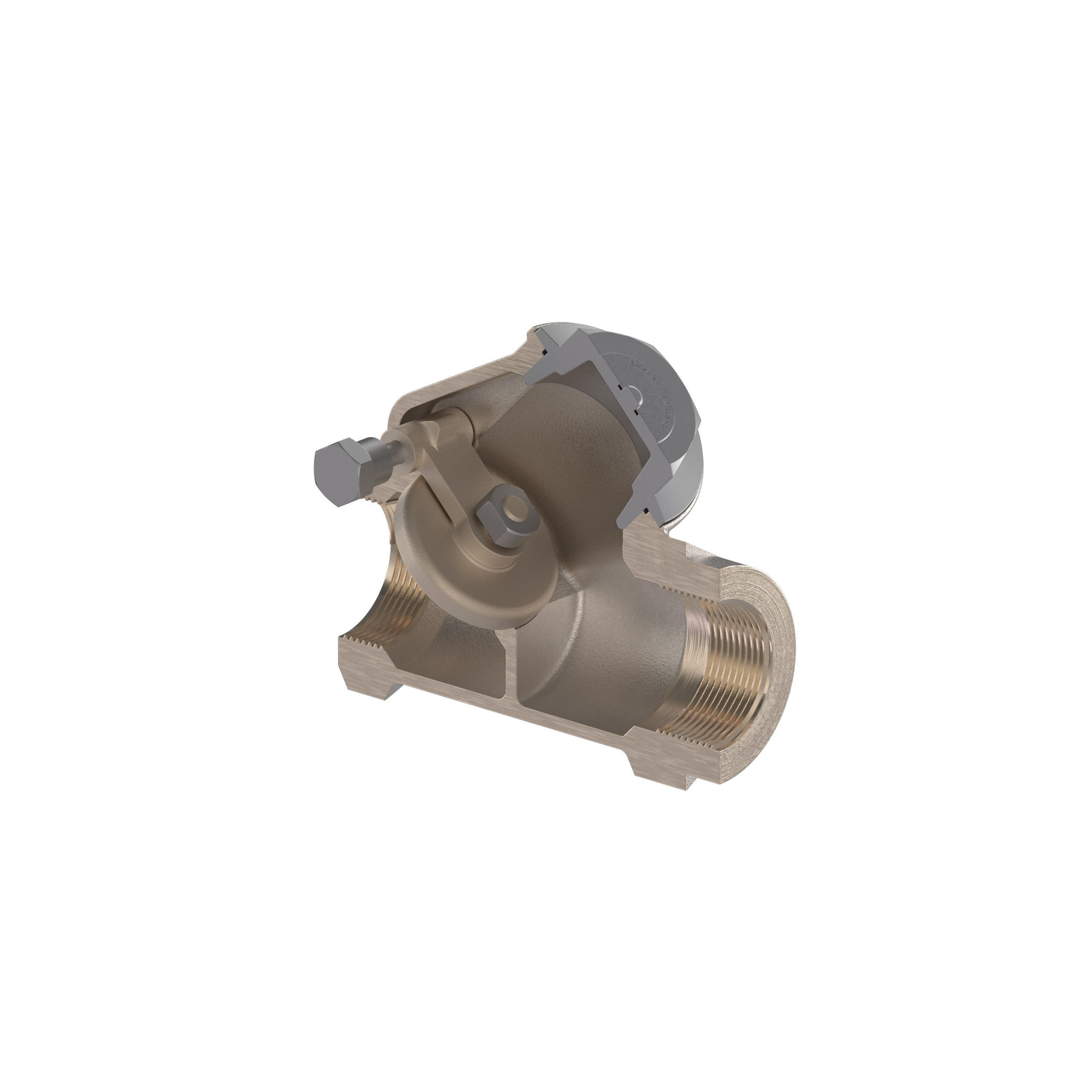

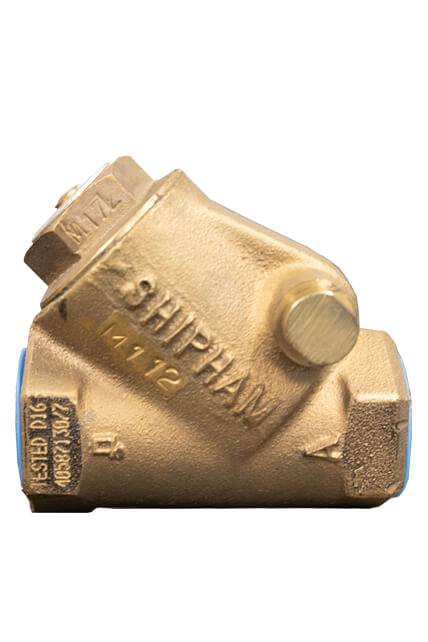

Shipham Valves Swing Check Valve with Screwed Bonnet SC01Shipham Valves Swing Check Valve with Screwed Bonnet SC01Swing Check Valve - SC01 with Screwed Bonnet available in sizes 1/2" - 2"

Our New Swing Check Valve Technical Sales Manual is now available to download. Click here.

Specifications

Technical Data

Size Range

1/2" - 2"

Temperature Range

-46°C to +425°C

Bonnet Style

Screwed Bonnet

Operator

Automatic

Shut Off Class

API 598, ISO 5208 Rate E

MATERIALS OF CONSTRUCTION

Body Materials

6Mo, Bronze, Duplex, Hastelloy® B, Hastelloy® C, Inconel® 625, Inconel® 825, Monel®, Nickel Aluminium Bronze, Super Duplex, Titanium

Obturator materials

Nickel Aluminium Bronze, Monel®, Bronze, Duplex, Super Duplex, Titanium, Inconel® 625, Inconel® 825, 6Mo, Hastelloy® B, Hastelloy® C

Stem Materials

Nickel Aluminium Bronze, Monel®, Duplex, Super Duplex, Titanium, Inconel® 625, Inconel® 718, Inconel® 825

Seal Materials

PTFE, Graphite

DESIGN STANDARDS & APPROVALS

Face to Face

Manufacturers Standard

Accreditations

PED 2014 / 68 / EU

Downloads Product Overview Benefits
Shipham Valves Swing Check Valve with Screwed Bonnet SC01

Swing Check Valve – SC01

Request a Quote

The benefits of the SC01 Screwed Bonnet Check Valve include:

  • Compact valve design
  • Automatic operation due to the fluid acting on the disc
  • The screwed bonnet ensures easy access to the internal components
  • Soft seated option for gaseous services

Swing Check Valve Technical Sales Manual

Download
